Product Show

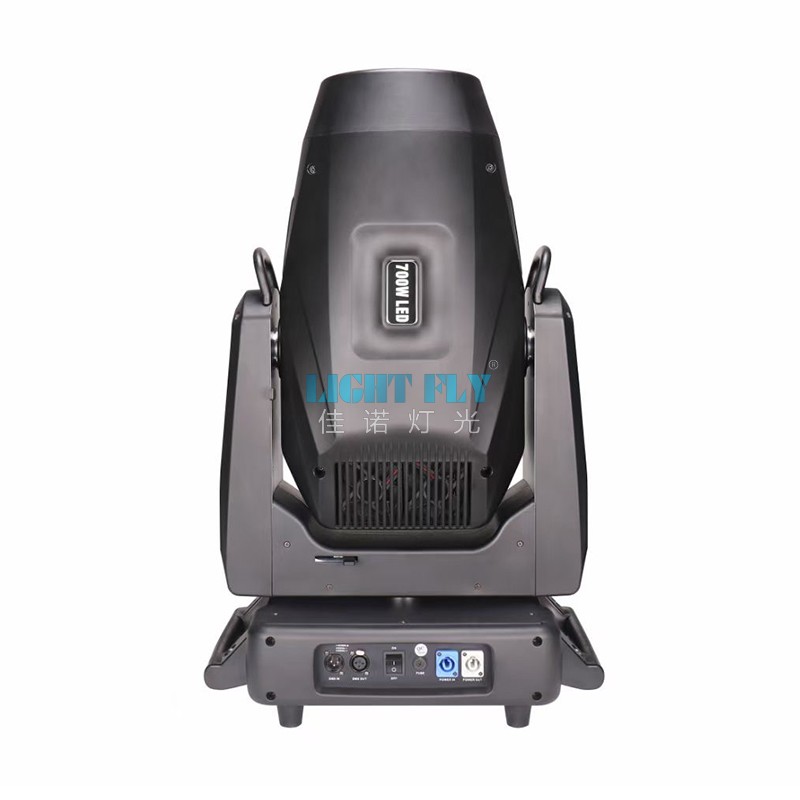

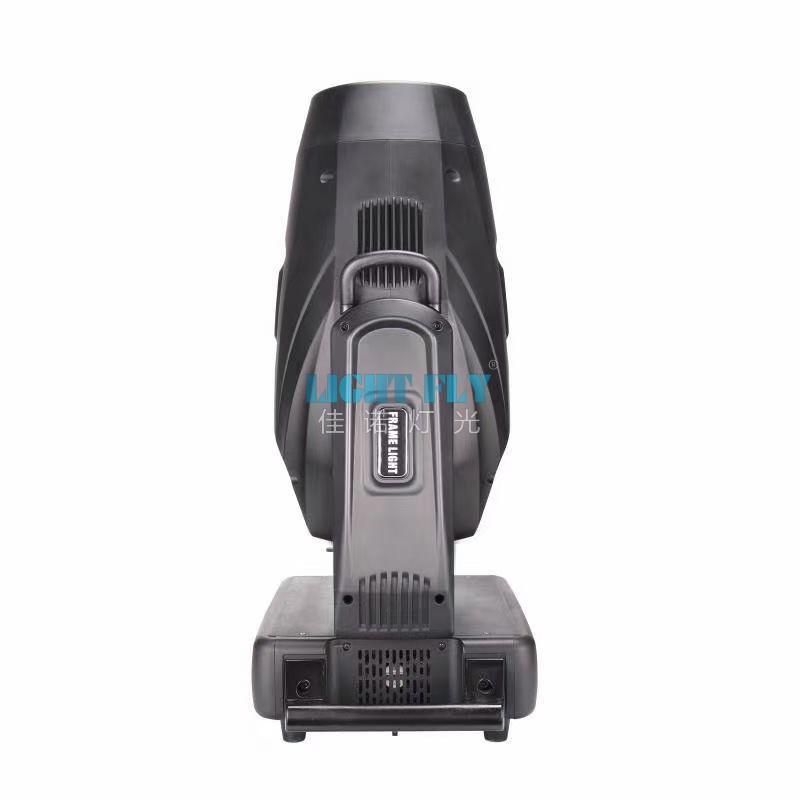

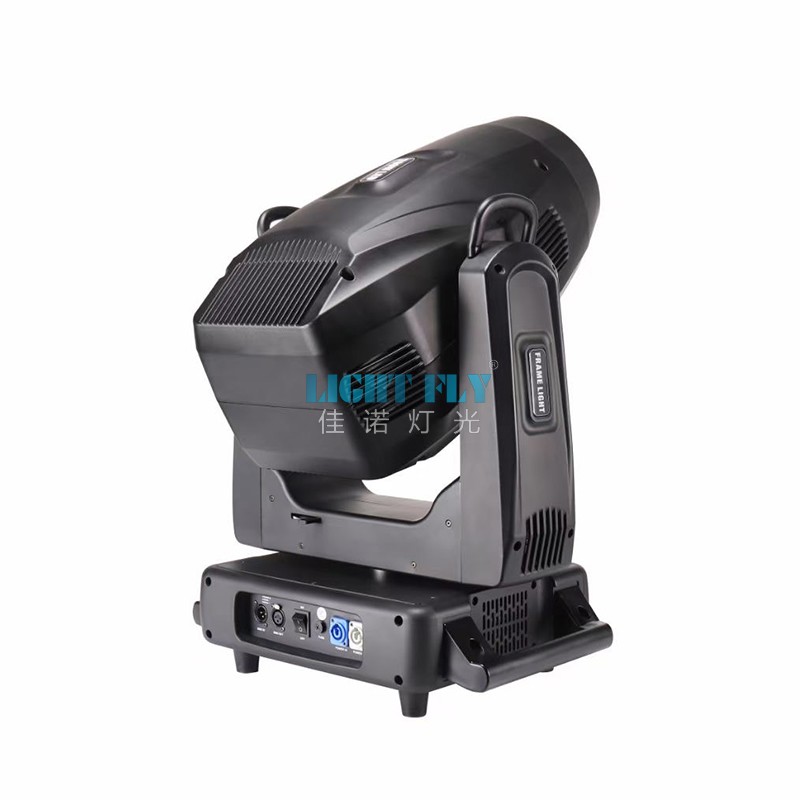

700W Moving Head LED Cutting Light

Product Status: Regular Product
Place of Origin: China (Guangzhou)
Product model: FLY-700BSWP
Product power: AC220V/110V, 50/60Hz
Certified: CE ROHS ISO9001
Product packaging: carton (air box optional)
Brand Name: Jianuo Lighting "LIGHT FLY"
Production method: OEM; ODM; OBM

Parameters

Effect

Video

1.Light and power system:
Input voltage	AC90～240V/50～60Hz	Light source life	50000 Hour
Total power	1000W	Light source color temperature	6500K Linear adjustment
Product light source	Imported OSRAM integrated 700W lamp beads	Focus function	Linear electronic focus
Lighting motherboard	700W Universal multifunctional electronic ballast	Dimming function	Dual dimming panel dimming, super smooth and flicker-free
Power source	700W Three-level power free adjustment	Strobe function	Independent strobe, adjustable from 0.5 to 20 times/second

2. Color/Pattern/Effect:
color wheel effect	7+1 Color wheel + bidirectional rotating rainbow effect	Prism effect	3 prisms + 6 rows of trapezoidal prisms + rotatable + stackable

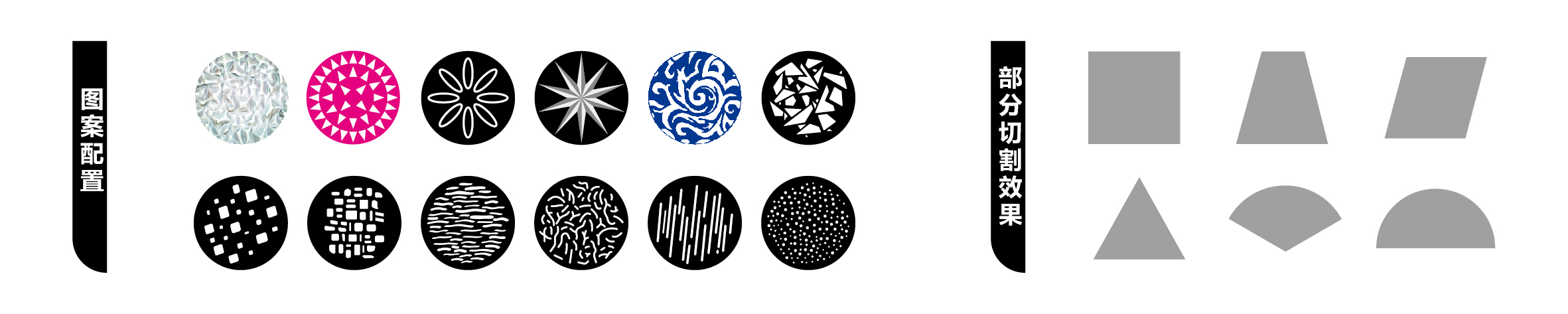

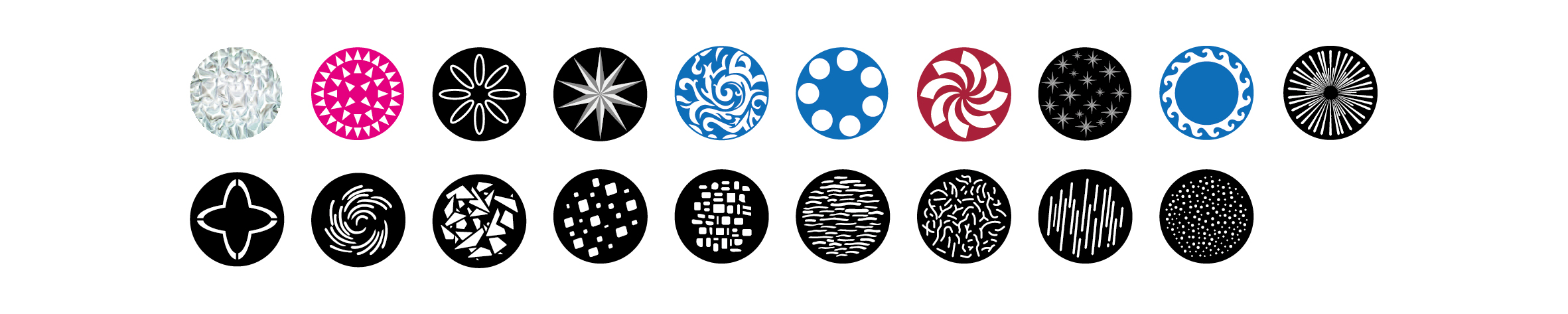

Fixed pattern	8+1 Fixed gobo + bidirectional shaking + water effect	optical cutting disc	Four-angle controllable spot chamfering system
Rotation pattern	6+1 Rotating gobo wheel + bidirectional shaking + water effect	Focus angle	4.5°～50° linear zoom zoom out and zoom in

3.Control System:
RDM Function	The console remotely adjusts the light address code	CMY Function	Uniform and smooth CMY+CTO color mixing system function
control mode	Standard 34 DMX512 channel mode	Scan speed	X direction 2.9 seconds/540 degrees, Y direction 1.5 seconds/270 degrees

4.Appearance parameters:
Lamp material	The channel adopts high-strength PAA66, which is resistant to high temperature and oxidation	carton size	520X360X830(mm)（1 tower）
Protection class	IP20	Net weight/gross weight	38.5KG / 40.5KG
Lamp body size	510X350X810(mm)	air box	1200×530×915(mm) (2 Taiwanese)
Product Weight	38.5KG	Net weight/gross weight	38.5KG / 40.5KG

5.other functions:
Other functions	The menu has a recording function, which shows the use time of the lamps and lanterns, and the fan automatically adjusts the speed. When the light is turned off, the power can be reduced by 60W.
Custom Accessories	Customization is not supported for less than 50 moving head lights, and customization is not supported for less than 100 LED lights. Custom parts lead time increases by 15-30 days. (Customized accessories such as: light source, gobo, color chip, LOGO, packaging, LED lens angle, etc.).
