Product Show

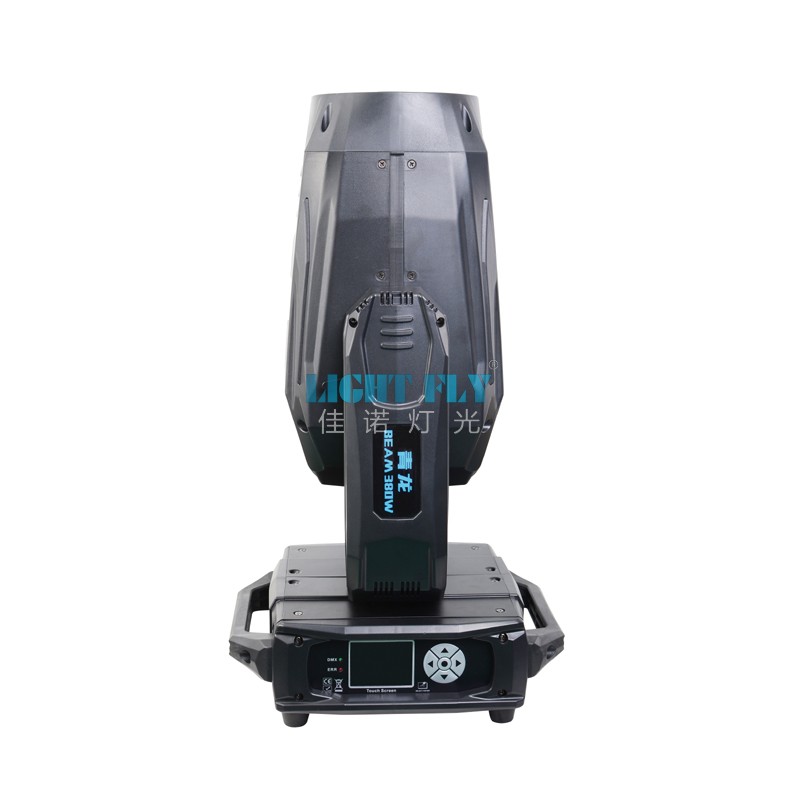

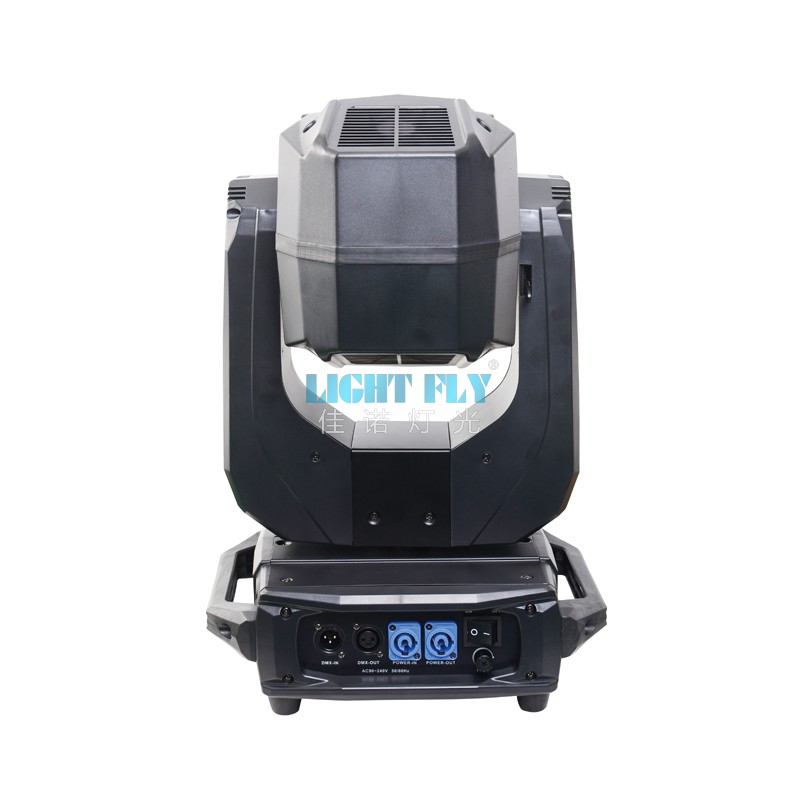

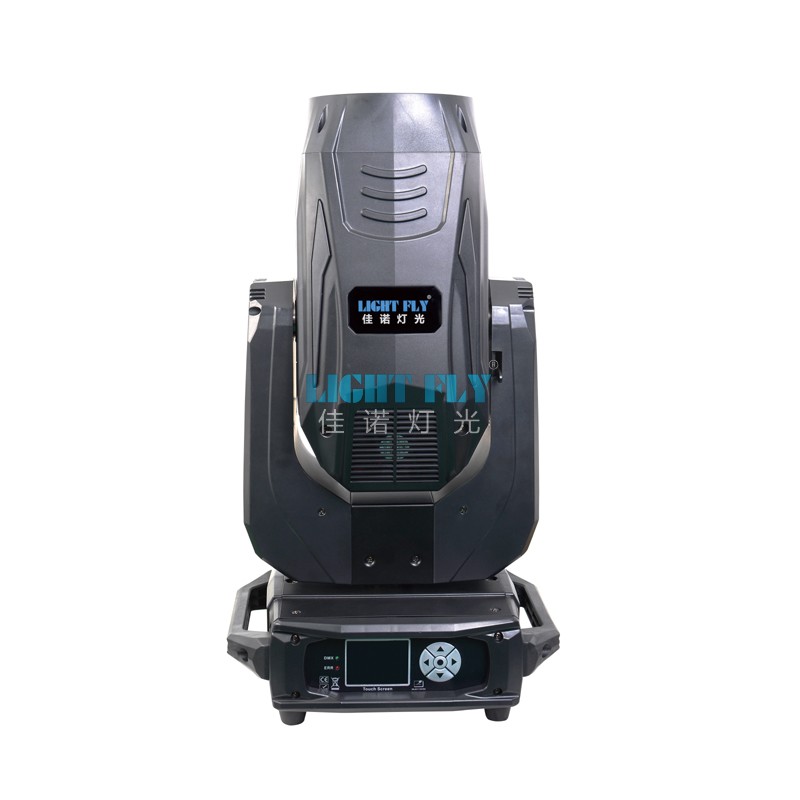

Qinglong 480W beam light

Product Status: Regular Product
Place of Origin: China (Guangzhou)
Product model: FLY-480B
Product power: AC220V/110V, 50/60Hz
Certified: CE ROHS ISO9001
Product packaging: carton (air box optional)
Brand Name: Jianuo Lighting "LIGHT FLY"
Production method: OEM; ODM; OBM

Parameters

Effect

Video

1.Light and power system:
Input voltage	AC90～240V/50～60Hz	Light source life	2000 Hour
Total power	650W	Light source color temperature	8500K Linear adjustment
Product light source	OSRAM SIRIUS HRI 471W	Focus function	Linear electronic focus
Lighting motherboard	471W Universal Multifunctional Electronic Ballast	Dimming function	Dual dimming panel dimming, super smooth and flicker-free
Power source	471W Three-level power free adjustment	Strobe function	Independent strobe, adjustable from 0.5 to 20 times/second

2.Color/Pattern/Effect:
color wheel effect	13+1 Color wheel, bidirectional rotating rainbow effect	Prism effect	24 Prism+(8+8) Honeycomb Prism/Support Custom Prism
Fixed pattern	13+1 Fixed gobo, bidirectional shaking, water effect	beam angle	BEAM Mode beam angle 0-1.7°
RDM Function	It can realize the modulation address code of the console, and the introduction is convenient	diffuser lens	High-precision coated glass lens

3.Control System:
control method	Standard DMX512 channel mode/voice control/self-propelled/master-slave	Projection range	X direction 540 degrees, Y direction 270 degrees can automatically correct the positioning
control mode	Standard 18-channel mode/extended 20-channel mode	Scan speed	X direction 540 degrees, Y direction 270 degrees can automatically correct the positioning

4.Appearance parameters:
Lamp material	The channel adopts high-strength PAA66, which is resistant to high temperature and oxidation	carton size	450X430X730(mm)（1 tower）
Protection class	conventional IP20	Net weight/gross weight	19.4KG / 23KG
Lamp body size	330X358X529(mm)	air box	900×630×715(mm) (2 Taiwanese)
Product Weight	19.4KG	Net weight/gross weight	38.8KG / 80.3KG

5.other functions:

special function

Recording function: display the lamp bulb usage time, the fan automatically adjusts the speed, and the power can be reduced by 60W when the light is turned off.

Automatic energy saving: It has an intelligent tracking energy saving system that reduces the power of the light source in time.

Sleep function: When the lamp is disconnected from the signal, it will automatically enter the sleep state, making the lamp more stable and safer.

Heat dissipation design: Adopt wind direction drainage and temperature intelligent monitoring technology to automatically adjust the heat dissipation system to effectively control the temperature of the lamps.

Custom Accessories

Customization is not supported for less than 50 moving head lights, and customization is not supported for less than 100 LED lights. Custom parts lead time increases by 15-30 days.

(Customized accessories such as: light source, gobo, color chip, LOGO, packaging, LED lens angle, etc.).
