Input voltage

  AC90～240V/50～60Hz

Light source life

  2000Hour

Total power

  400W

Light source color temperature

  6500K Linear adjustment

Product light source

  OSRAM SIRIUS HRI 230W

Focus function

  Electronic focus

Lighting motherboard

  230W Universal Multifunctional Electronic Ballast

Dimming function

  Dual dimming panel dimming, super smooth and flicker-free

Power source

  230W three-level power free adjustment

Strobe function

  Independent strobe, adjustable from 0.5 to 20 times/second

color wheel effect

  9+1 Color wheel, bidirectional rotating rainbow effect

Prism effect

  16 prism + trapezoidal prism / 16 prism + 24 prism optional

Fixed pattern

  17+1 Fixed gobo, bidirectional shaking, water effect

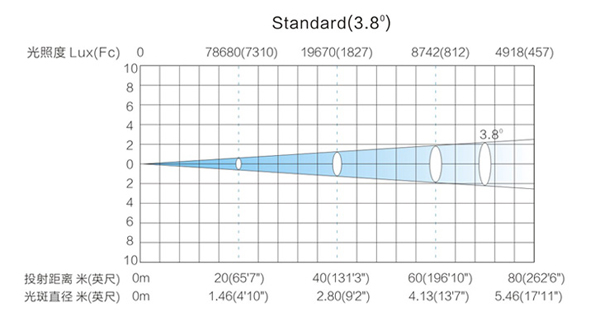

beam angle

  BEAM model 0～3.8°

Rotation pattern

  No rotation pattern

diffuser lens

  8°～60° Independent soft light effect

control method

  standard DMX512 channel mode

Projection range

 X direction 540 degrees, Y direction 270 degrees can automatically correct the positioning

control mode

  standard 16 Channels/Extended 20 Channels

Scan speed

  X direction 2.9 seconds/540 degrees, Y direction 1.5 seconds/270 degrees

Lamp material

  High-strength PA66, high temperature resistance, anti-aging

carton size

  450X430X730(mm)（1 tower）

Protection class

  IP20

Net weight/gross weight

  15.5KG / 19.5KG

Lamp body size

  310X358X489(mm)

air box

  800×580×695(mm) (2 Taiwanese)

Product Weight

  15.5KG

Net weight/gross weight

  32.5KG / 71.5KG

Other functions

  The menu has a recording function, which shows the use time of lamps and lanterns. The fan automatically adjusts the speed, and the power can be reduced by 60W when the light is turned off.

Custom Accessories

   Customization is not supported for less than 50 moving head lights, and customization is not supported for less than 100 LED lights. Custom parts lead time increases by 15-30 days.

(Customized accessories such as: light source, gobo, color chip, LOGO, packaging, LED lens angle, etc.)
